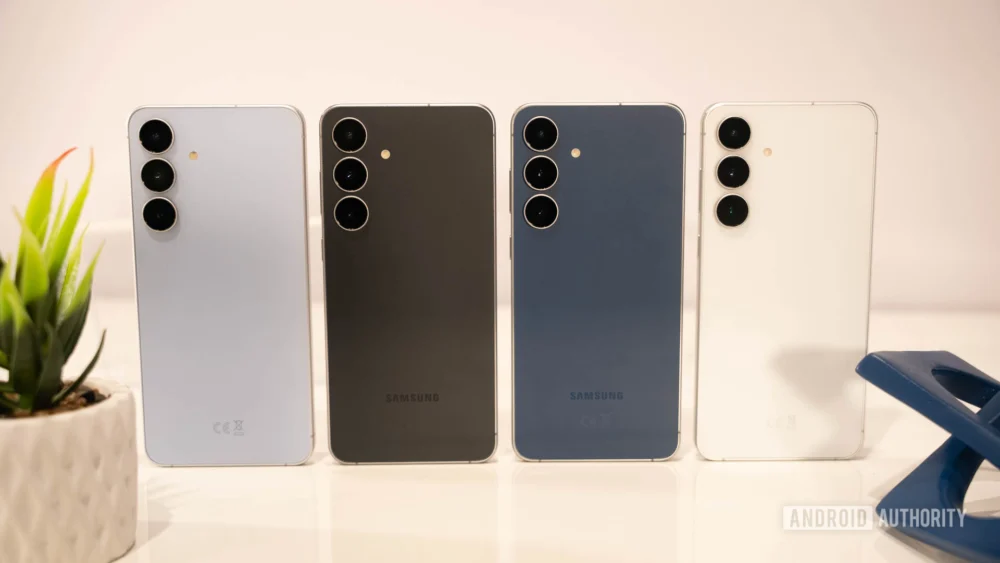

The impending arrival of the Samsung Galaxy S26 series is poised to usher in a new era for the flagship line, not just through rumored software enhancements but critically through a continuation of its dual-silicon strategy. This year, the fundamental performance characteristics of Samsung’s top-tier devices will be dictated by a split between its proprietary Exynos silicon and Qualcomm’s leading Snapdragon platform, creating distinct user experiences across different geographic territories and model tiers. Unpacking this architectural divergence is essential for understanding the nuanced performance landscape awaiting consumers.
Reports indicate a predictable, yet significant, bifurcation: standard Galaxy S26 and S26 Plus models sold across much of the global market will be driven by the Samsung Exynos 2600. Conversely, the powerful Snapdragon 8 Elite Gen 5 will anchor the devices destined for the United States, select Asian markets, and, crucially, every unit of the premium Galaxy S26 Ultra, regardless of where it is sold. While this strategy aligns with Samsung’s established practice, the technical gulf between the two System-on-Chips (SoCs) appears narrower—and perhaps more complex—than in previous cycles, driven by significant architectural leaps on both sides.
Contextualizing the Decades-Long Rivalry
This annual competition between Exynos and Snapdragon is more than just a technical footnote; it is a defining element of Samsung’s global hardware strategy. For years, the perceived disparity in performance, thermal management, and efficiency between the two chips resulted in consumer frustration, often manifesting as the "Exynos tax" in regions receiving the in-house solution. Samsung’s reliance on Qualcomm for high-end devices in key markets stems from a desire to guarantee peak performance, especially in areas where sustained gaming or high-demand computational tasks are prevalent.
The underlying industry dynamic fueling this is the manufacturing relationship. Qualcomm typically leverages TSMC’s cutting-edge fabrication processes (currently rumored to be the highly refined 3nm N3P node for the 8 Elite Gen 5). Meanwhile, Samsung relies on its own foundry arm, utilizing its nascent 2nm Gate-All-Around (GAA) process for the Exynos 2600. The maturity of the fabrication node often plays as significant a role in final chip performance and yield as the design architecture itself. TSMC’s long-established process often offers better immediate power efficiency and stability, a historical advantage Qualcomm has capitalized on.
CPU Architecture: The Arm Ecosystem Battle
The heart of the difference lies within the Central Processing Units (CPUs), both of which are built upon the foundational instruction sets provided by Arm Holdings, yet customized extensively by their respective licensees.
Qualcomm’s Snapdragon 8 Elite Gen 5 employs its custom-designed Oryon CPU cores. This generation features a configuration headlined by two high-frequency "Prime" cores clocked at an imposing 4.6GHz, supported by six high-efficiency "Performance" cores operating around 3.62GHz. The strength of the Oryon architecture has historically been its brute-force single-core throughput, often setting the benchmark for immediate responsiveness in the Android ecosystem.
The Exynos 2600, however, presents a different philosophy, relying on the latest generation of Arm’s reference Cortex cores. Its structure includes one flagship Arm C1-Ultra core clocked at 3.8GHz, flanked by three C1-Pro cores at 3.25GHz, and six C1-Pro cores at 2.75GHz. This configuration boasts a higher aggregate core count (10 total processing cores versus Snapdragon’s 8), suggesting a potential advantage in heavily multi-threaded operations and background task management.
While early indicators suggest the latest C1-Ultra core might trail the third-generation Oryon Prime core in peak single-thread benchmarks by approximately 10%, the Exynos’s sheer core density could balance the equation in sustained, complex multi-core workloads common in modern operating systems. The clock speeds are a critical factor; the Exynos 2600’s lower peak frequency on its primary core suggests that the Snapdragon variant may retain the edge in tasks demanding immediate, peak responsiveness, such as launching apps or navigating light user interfaces.
The Machine Learning Frontier: SME vs. SME2
Beyond traditional compute, the battleground is increasingly shifting to on-device Artificial Intelligence (AI) processing, manifesting in differences in the System Memory Extensions (SME) support. This is a subtle but profound architectural divergence.
The Snapdragon 8 Elite Gen 5 integrates support for Arm’s first-generation SME extension. In contrast, the Exynos 2600 is slated to incorporate SME2. These extensions utilize dedicated, specialized cores situated adjacent to the main CPU clusters, designed to accelerate matrix mathematics crucial for machine learning inference with greater energy efficiency than the general-purpose CPU cores.
SME2 introduces significant upgrades over its predecessor, including support for multi-vector instructions, advanced weight compression techniques, and the ability to efficiently run "tiny binary networks." This technological refinement on the Exynos side implies a distinct advantage in handling lighter, latency-sensitive AI tasks—such as real-time text summarization, on-device voice processing, or rapid contextual filtering—without needing to fully engage the heavier Neural Processing Unit (NPU). This efficiency gain could translate directly into superior battery life during periods of moderate AI utilization.
Samsung’s own NPU, the 32K MAC unit in the Exynos 2600, is touted as being twice as powerful as its predecessor, signaling aggressive investment in this domain. Qualcomm counters with its Hexagon NPU, reported to be 37% faster than the previous iteration. While both figures point toward substantial AI acceleration, the SME2 advantage on the Exynos chip might allow it to punch above its weight in specific AI benchmarks that leverage these CPU-adjacent optimizations, potentially offsetting any raw NPU throughput deficit.
GPU Powerhouse: Adreno Versus Xclipse RDNA
The graphical processing unit (GPU) remains the most visible differentiator for gamers and media professionals. Qualcomm continues its long-standing dominance with the Adreno 840, a GPU architecture renowned for its consistent high performance in rasterization—the fundamental rendering method for most 3D graphics. The Adreno’s implementation of High Performance Memory and its specialized Snapdragon Game Super Resolution feature are designed to maintain high frame rates under duress.
Samsung’s Xclipse 960, built upon AMD’s RDNA architecture, represents the third iteration of this partnership. Industry whispers suggest the Xclipse 960 is migrating to a newer RDNA iteration, promising substantial gains in compute performance. While Qualcomm’s peak clock speed is estimated near 1.2GHz, the Xclipse is reportedly pushing towards 980MHz, suggesting a close race in raw clock potential.
Crucially, Samsung is aggressively targeting features historically associated with high-end PC graphics. The Exynos 2600 debuts Exynos Neural Super Sampling (ENSS), a direct competitor to Qualcomm’s upscaling technologies, leveraging AI to enhance resolution and generate frames. Furthermore, Samsung claims a 50% improvement in ray-tracing performance over the previous Exynos generation. Ray tracing, while still niche in mobile gaming, is a significant metric for future visual fidelity. If the Exynos 960 can genuinely outperform the Adreno 840 in these specialized, compute-heavy rendering paths, it could secure a narrow victory in specific, demanding titles optimized for ray tracing.
However, in standard rasterization benchmarks—the bread and butter of mobile gaming performance—analysts anticipate the Snapdragon 8 Elite Gen 5 will likely maintain a tangible, though perhaps shrinking, lead, reflecting several generations of cumulative architectural refinement in the Adreno line. For the majority of consumers whose gaming load involves titles optimized for 60 or 90fps, both SoCs are expected to deliver performance well in excess of what is currently required, rendering the practical difference negligible unless thermal limitations intervene.
Manufacturing, Efficiency, and Thermal Management
The fabrication process introduces one of the most critical, yet least transparent, variables: efficiency and sustained performance under load. The Exynos 2600 is manufactured using Samsung Foundry’s pioneering 2nm GAA process. Theoretically, a smaller node should offer superior transistor density and power efficiency.
Yet, the comparison is complicated by the maturity factor. TSMC’s 3nm N3P process, used for the Snapdragon, is a more mature node, often translating to higher initial manufacturing yields and potentially allowing Qualcomm to design for higher performance ceilings without immediately running into thermal runaway issues.
A more tangible factor impacting efficiency is modem integration. The Snapdragon 8 Elite Gen 5 features the integrated Snapdragon X85 modem, which typically offers superior power management through tight integration with the main SoC. The Exynos 2600, by contrast, is reportedly designed to rely on an external modem solution. This necessitates additional physical silicon, increased communication overhead, and potentially greater power draw for baseline connectivity tasks like 5G data transmission, which can erode any efficiency gains made elsewhere in the chip design.
The Throttling Question: HPB Technology
Perhaps the most significant practical differentiator expected this year relates not to peak performance, but to sustained performance—thermal throttling. The longevity of high frame rates in extended gaming sessions is often the true test of an SoC.
Samsung is reportedly equipping the Exynos 2600 with its proprietary Heat Pass Block (HPB) technology, a sophisticated internal thermal management solution designed to enhance heat dissipation across the die. This innovation, expected to be exclusive to the Exynos variant in the S26 generation, could be the key equalizer. If HPB effectively manages the thermal load generated by the 2nm process and the Arm cores, the Exynos 2600 could sustain higher performance levels for longer durations than the Snapdragon 8 Elite Gen 5, which is not anticipated to receive this specific thermal advantage until the subsequent generation. Given that previous Snapdragon chips have sometimes exhibited high operational temperatures in compact flagship chassis, this thermal engineering could swing user perception heavily in favor of the Exynos devices if throttling proves to be a real-world issue for the Snapdragon variant.
Industry Implications and Future Trajectories
The continued adoption of this dual-chip model carries significant industry implications. For Samsung, it represents a calculated risk management strategy. Maintaining the Exynos line ensures they retain in-house chip development expertise, fostering long-term independence from Qualcomm, a crucial strategic goal for any tech titan. Success with the 2nm GAA process for the Exynos 2600 would validate Samsung Foundry’s technological roadmap, potentially attracting external high-profile clients beyond their own device division.
For the broader Android ecosystem, this intense internal competition benefits consumers. The constant pressure forces both Qualcomm and Samsung to innovate aggressively on multiple fronts—CPU architecture, AI acceleration (NPU/SME), and graphics fidelity (ray tracing). The narrowing gap in core design, highlighted by the competitive performance of the latest Arm Cortex cores against Qualcomm’s custom silicon, suggests a future where architectural specialization (like SME2) might matter more than sheer GHz or benchmark scores.
Ultimately, the divergence in the Galaxy S26 series forces a complex analysis. While the Snapdragon 8 Elite Gen 5 is predicted to hold the overall performance crown, particularly in raw GPU rasterization and established multi-core metrics, the Exynos 2600 brings compelling counter-arguments: superior AI instruction handling via SME2, potential ray-tracing leadership, and a potentially game-changing thermal solution with HPB. The true measure of success will not be in synthetic benchmarks, but in the day-to-day user experience—battery life during moderate use and sustained gameplay stability. Consumers outside the Ultra tier will need to monitor real-world reviews closely to determine whether the performance gap has truly closed, or if the historical division remains a relevant factor in their purchasing decision.
